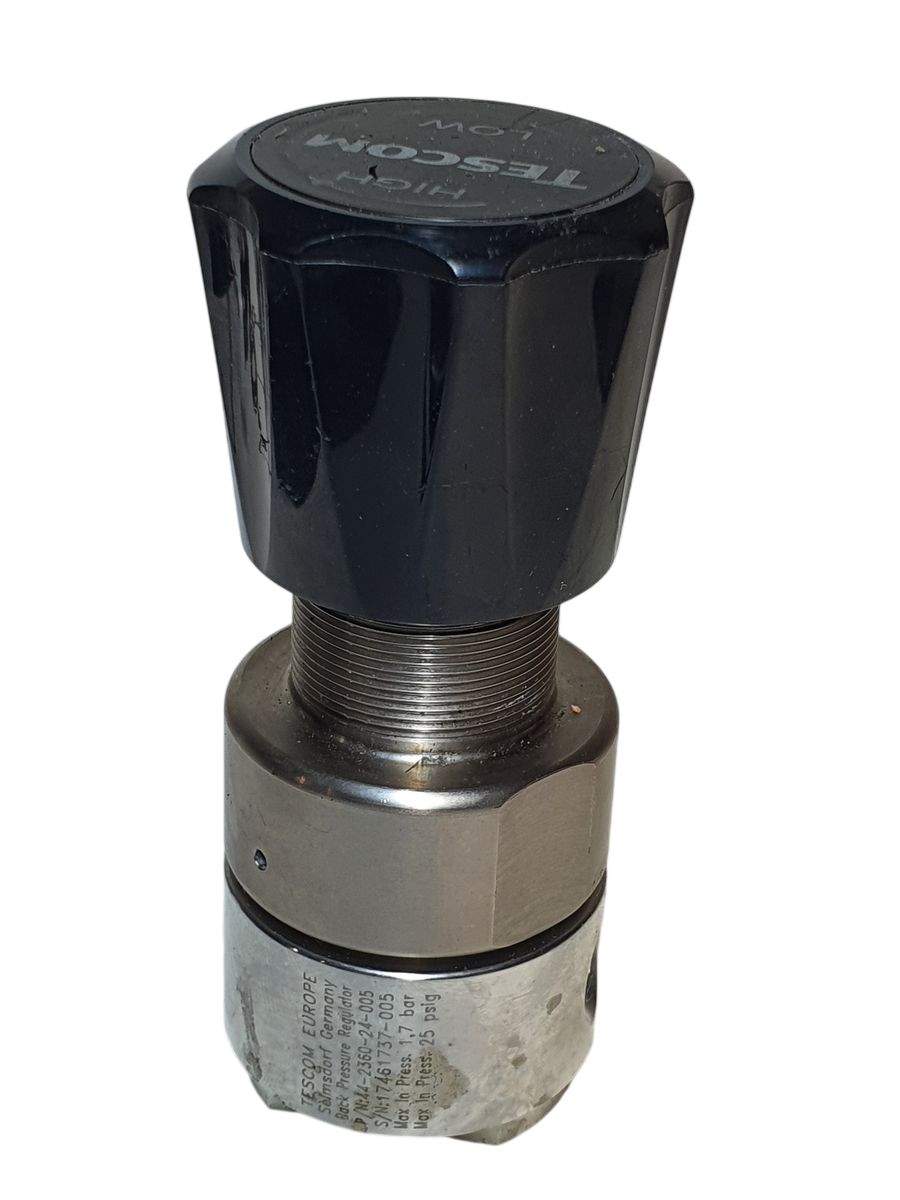

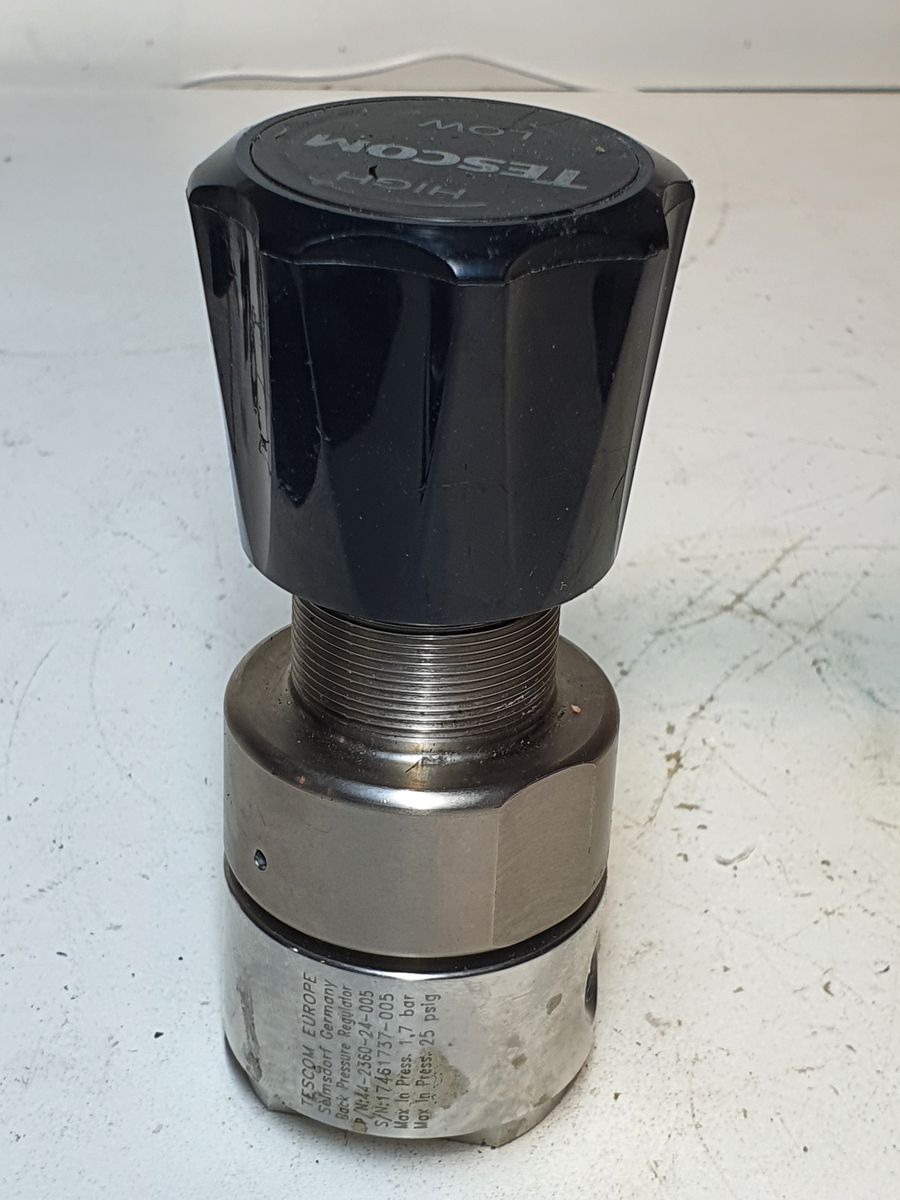

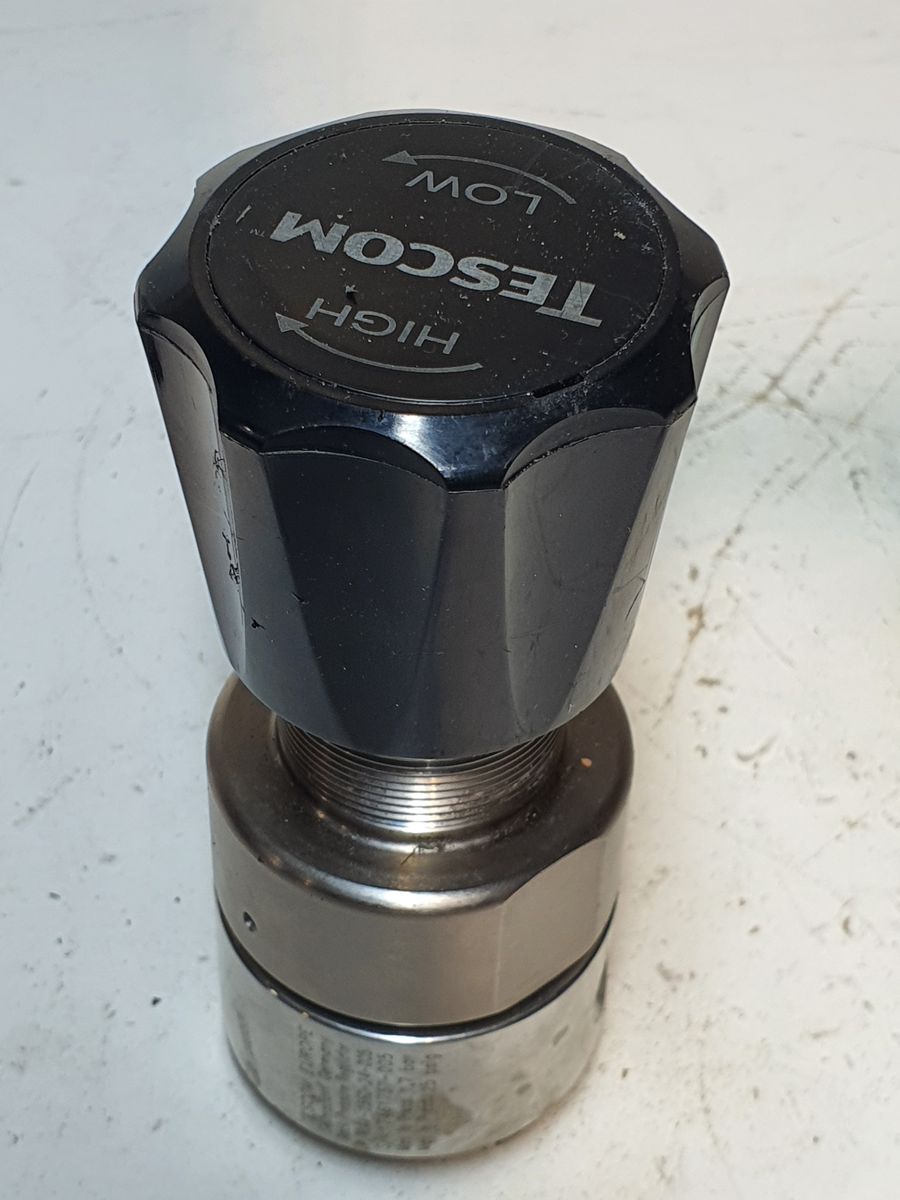

Tescom 44-2360-24-005
SKU: 8023
Op voorraad
Warranty Information
Belangrijk: Alle garanties zijn onze eigen garanties en dekken geen fabrieks- of fabrikantgaranties.

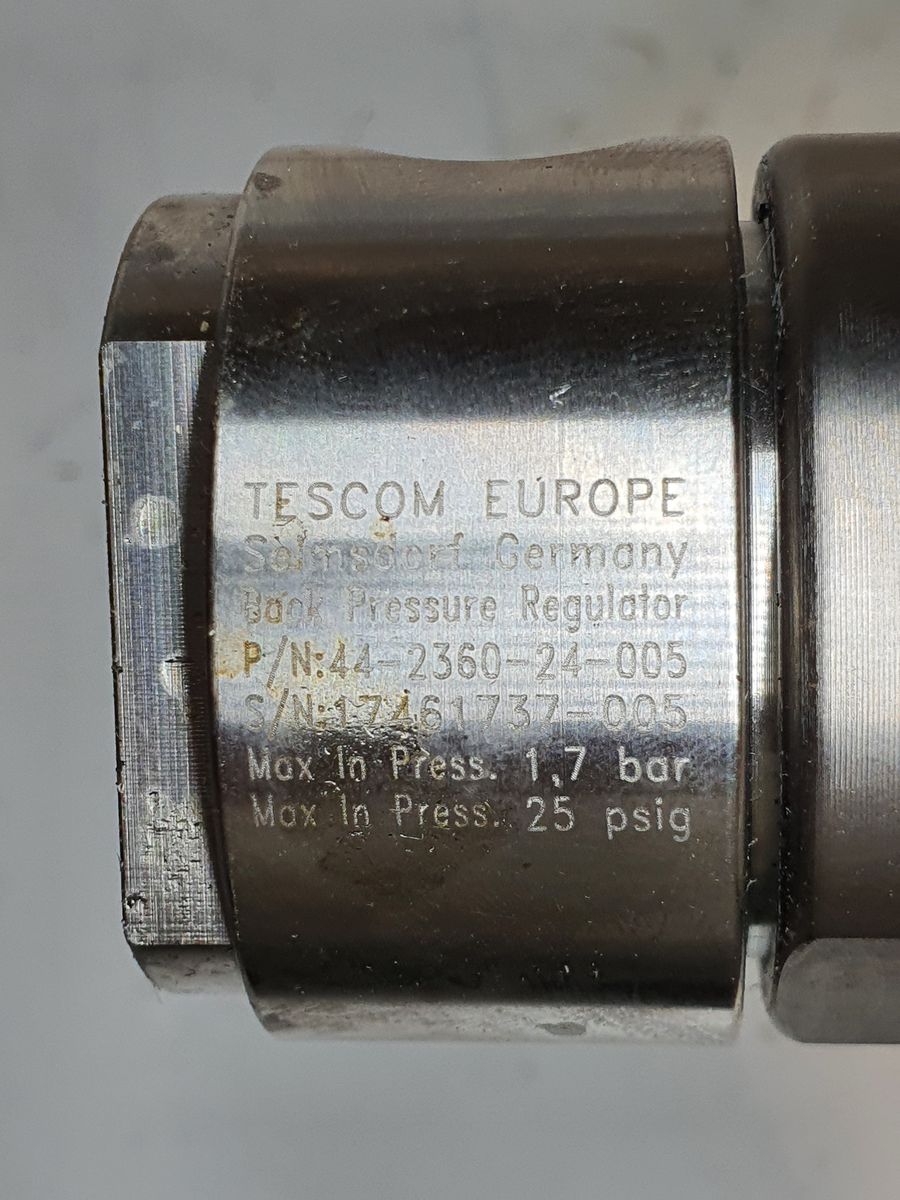

TESCOM 44-2360-24-005
Specification Table
| Parameter | Details |
|---|---|
| Series | TESCOM 44-2300 Single Stage Backpressure Regulator |
| Model / Part Number | 44-2360-24-005 |
| Function | Backpressure (Back) Regulator |
| Controlled Pressure Range | 0–25 psig (0–1.7 bar) |
| Maximum Inlet / Proof Pressure | 150% of rated pressure |
| Leakage | Internal: bubble-tightExternal: < 2 × 10โปโธ atm cc/sec He |
| Operating Temperature | –40°F to 140°F (–40°C to 60°C) |
| Flow Capacity (Cv) | 0.08 |
| Maximum Operating Torque | Approx. 30 in-lb (3.4 N·m) |
| Body Material | 316 Stainless Steel |
| Bonnet Material | 300 Series Stainless Steel |
| Seat Material | PCTFE |
| Diaphragm Material | 316 Stainless Steel or Elgiloy® |
| Remaining/Internal Parts | 316 Stainless Steel |

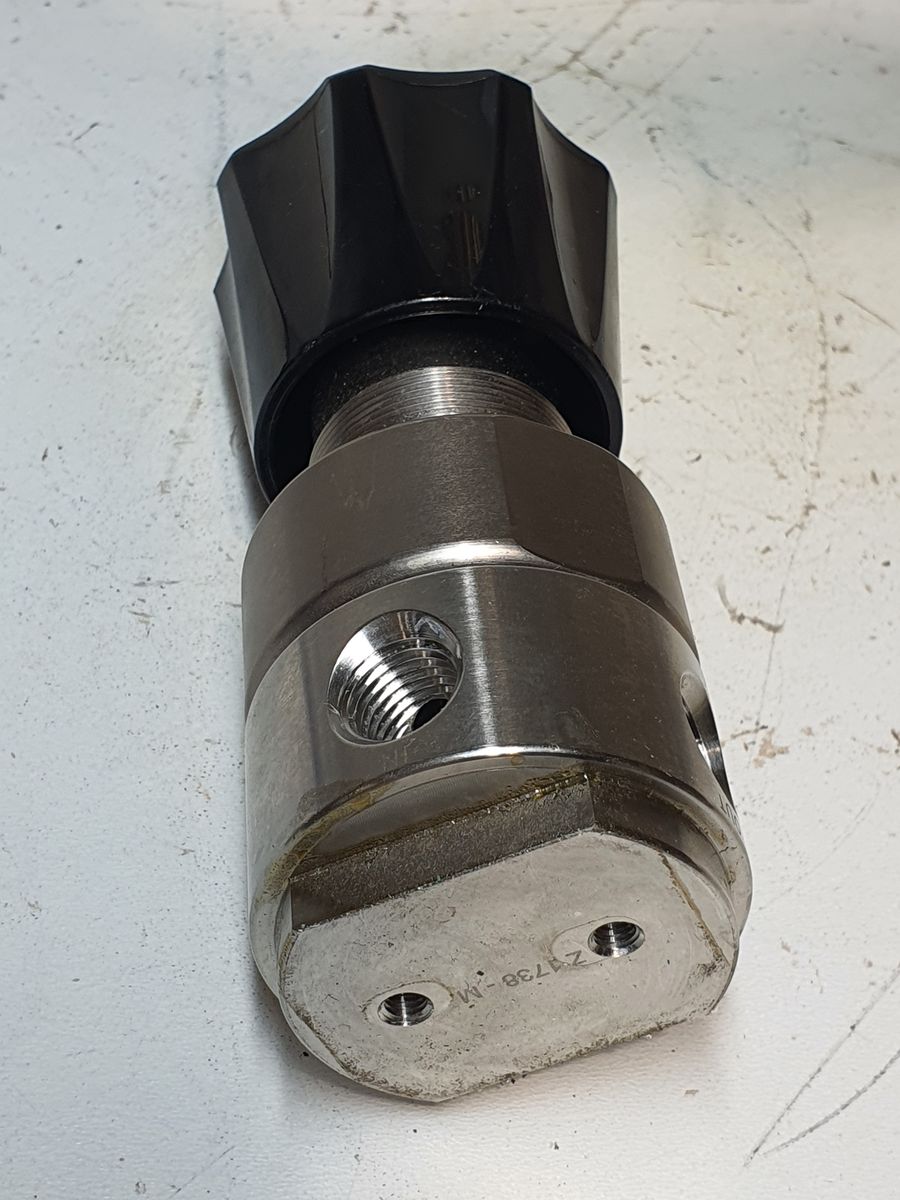

| Port Size & Type | 1/4″ NPTF (female) |
| Weight (without gauges) | Approx. 2 lb (0.9 kg) |
| Typical Applications | Analytical systems, gas sampling, pilot plants, OEM packages, R&D laboratories |
| Features | Diffusion-resistant metal diaphragm seal; compact design; low contamination; close crack/reseat differential |
×
![]()
