Tescom 44-2262-241 Pressure-Reducing Regulator

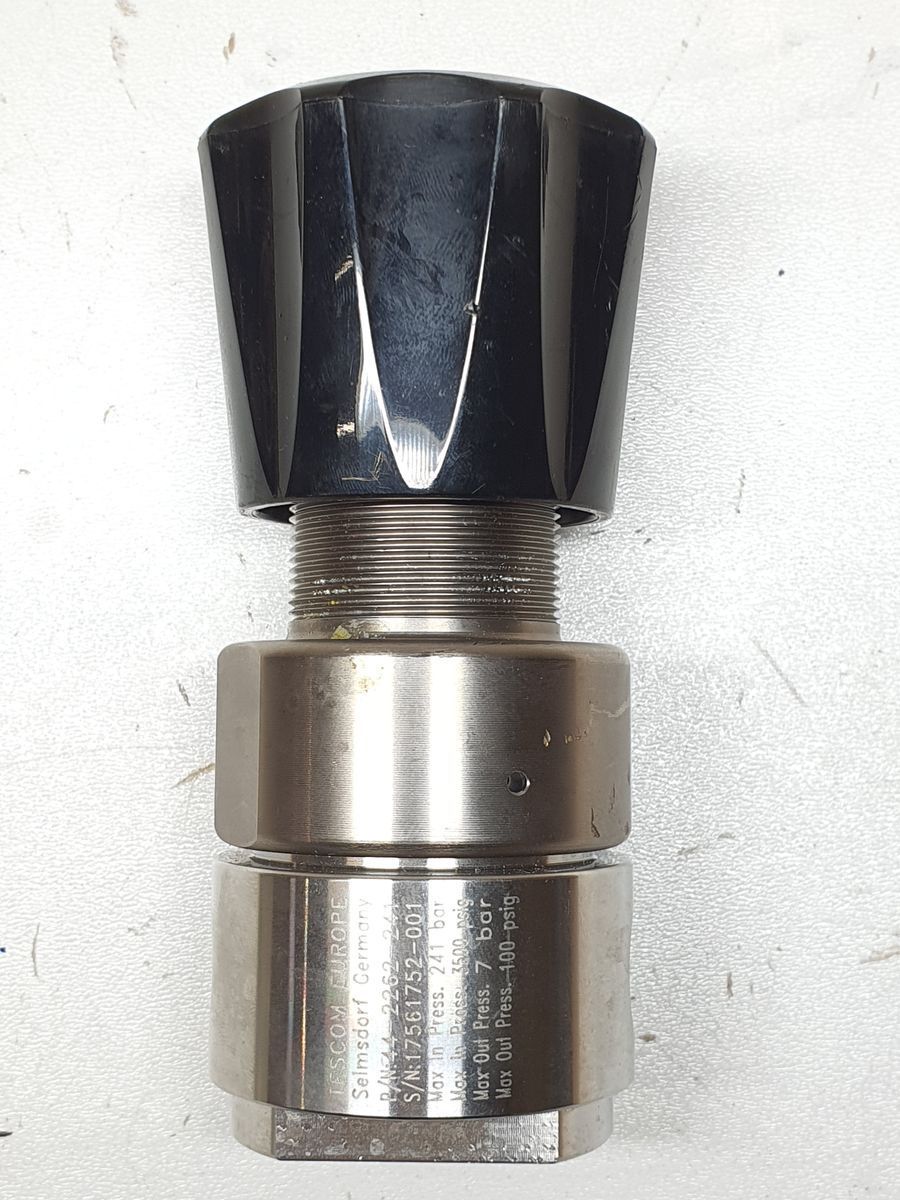

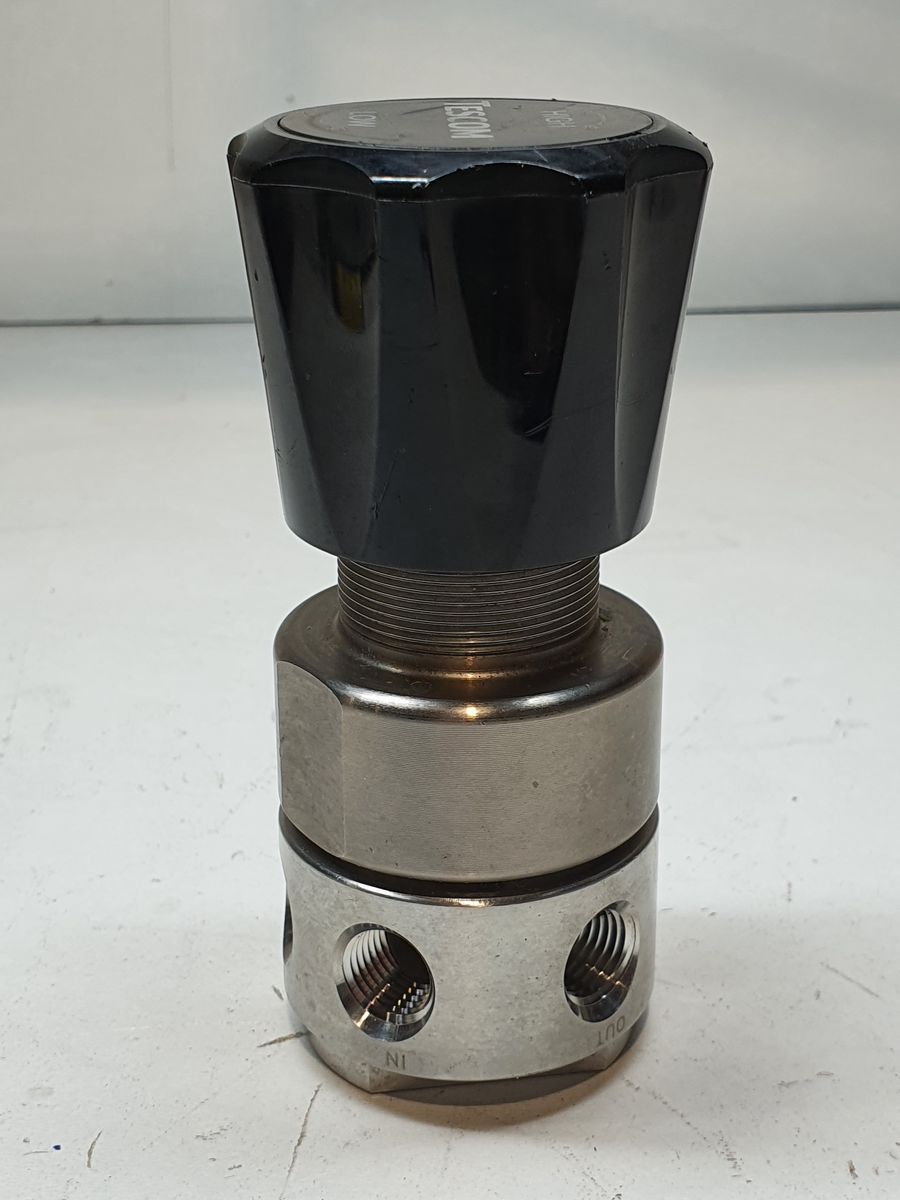

Tescom 44-2262-241 single-stage, pressure-reducing regulator

Description:
The Tescom 44-2262-241 is a single-stage, pressure-reducing regulator from the Tescom 44-2200 Series, engineered for precise control of gas pressures in specialty, industrial, flammable, or high-purity applications. It features a diffusion-resistant metal diaphragm seal that preserves gas purity and ensures stable regulation over a wide inlet pressure range. The compact, lightweight design makes it suitable for laboratory systems, gas distribution panels, sampling systems, and cylinder regulator applications.

Key Features:
- Single-stage pressure reducing regulator for gas service
- High inlet pressure capability: up to 3500 psig / 241 bar
- Outlet pressure range: 0–100 psig / up to 7 bar (selected range)
- Metal diaphragm and body seal for minimal leakage and long service life
- Compact, lightweight construction for easy installation
- Suitable for corrosive, non-corrosive, toxic, and specialty gases
- Options for panel mounting and material configurations (e.g., 316L SS, brass)

Specifications:
- Operating Parameters

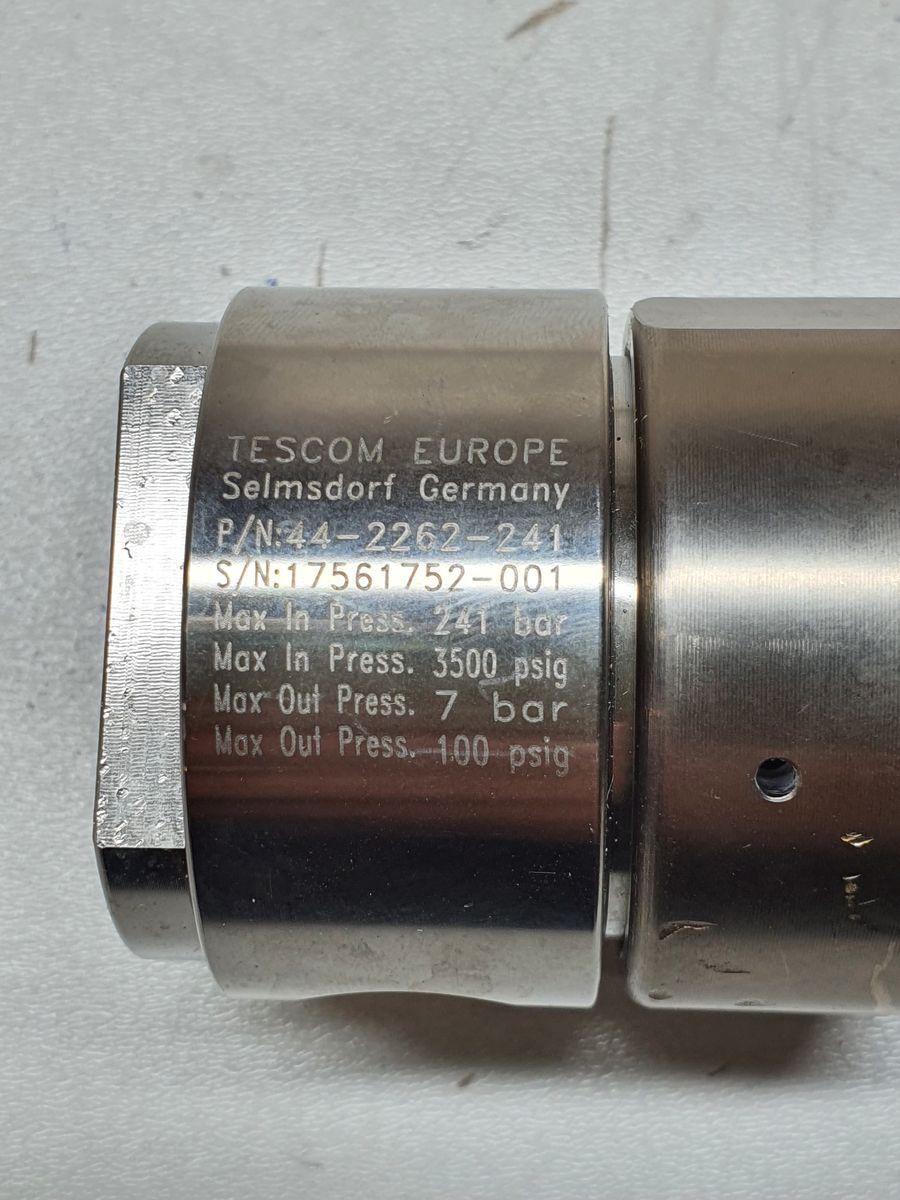

Model: 44-2262-241
Series: Tescom 44-2200
Regulator Type: Single-stage, pressure-reducing
Maximum Inlet Pressure: 3500 psig / 241 bar
Rated Outlet Pressure Range: 0–100 psig / 0–7 bar
Flow Capacity: Cv = 0.06 (at 3500 psig inlet)
Internal Leakage: Bubble tight (internal)
Proof Pressure: 150 % of maximum rated

- Materials & Ports
Body Material: 316L Stainless Steel (typical)
Seat: PTFE
Diaphragm: 316 Stainless Steel or Elgiloy® based on configuration

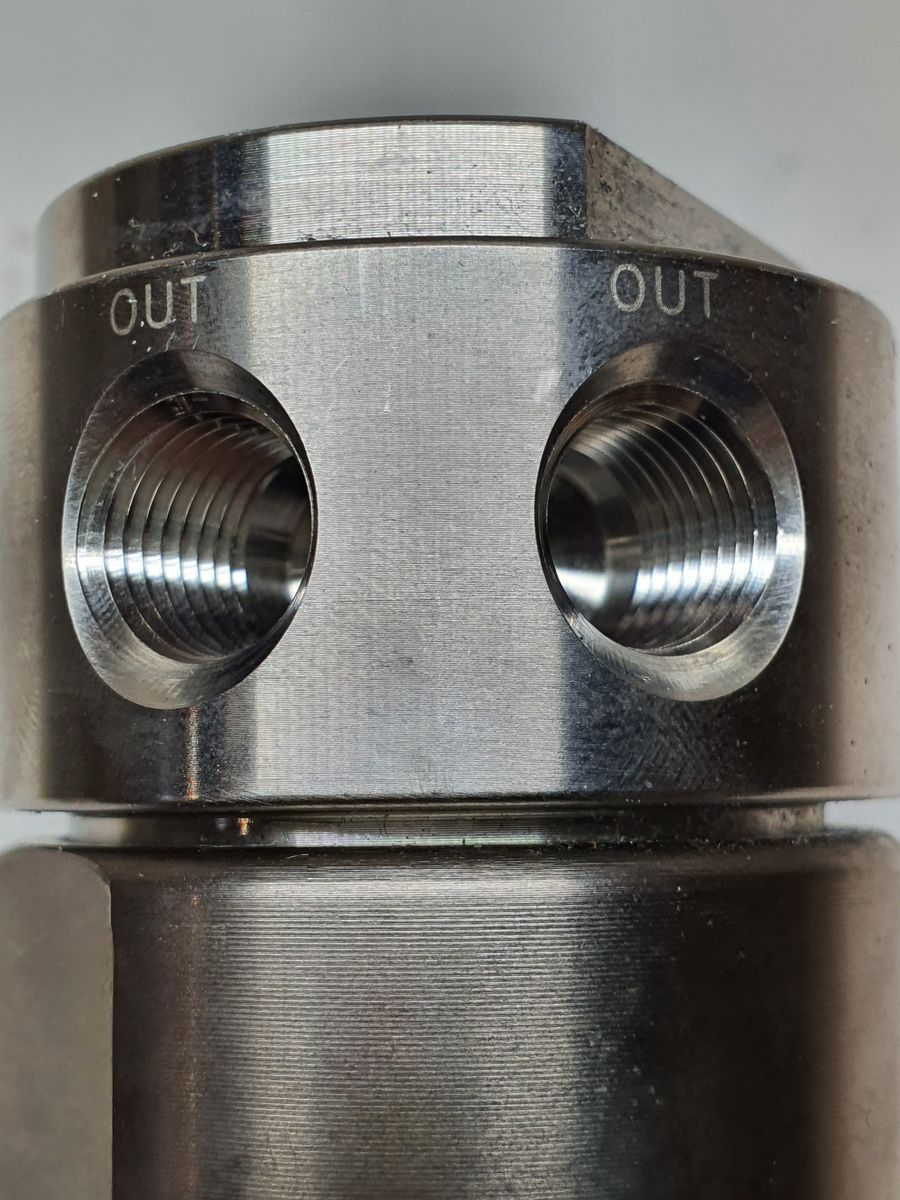

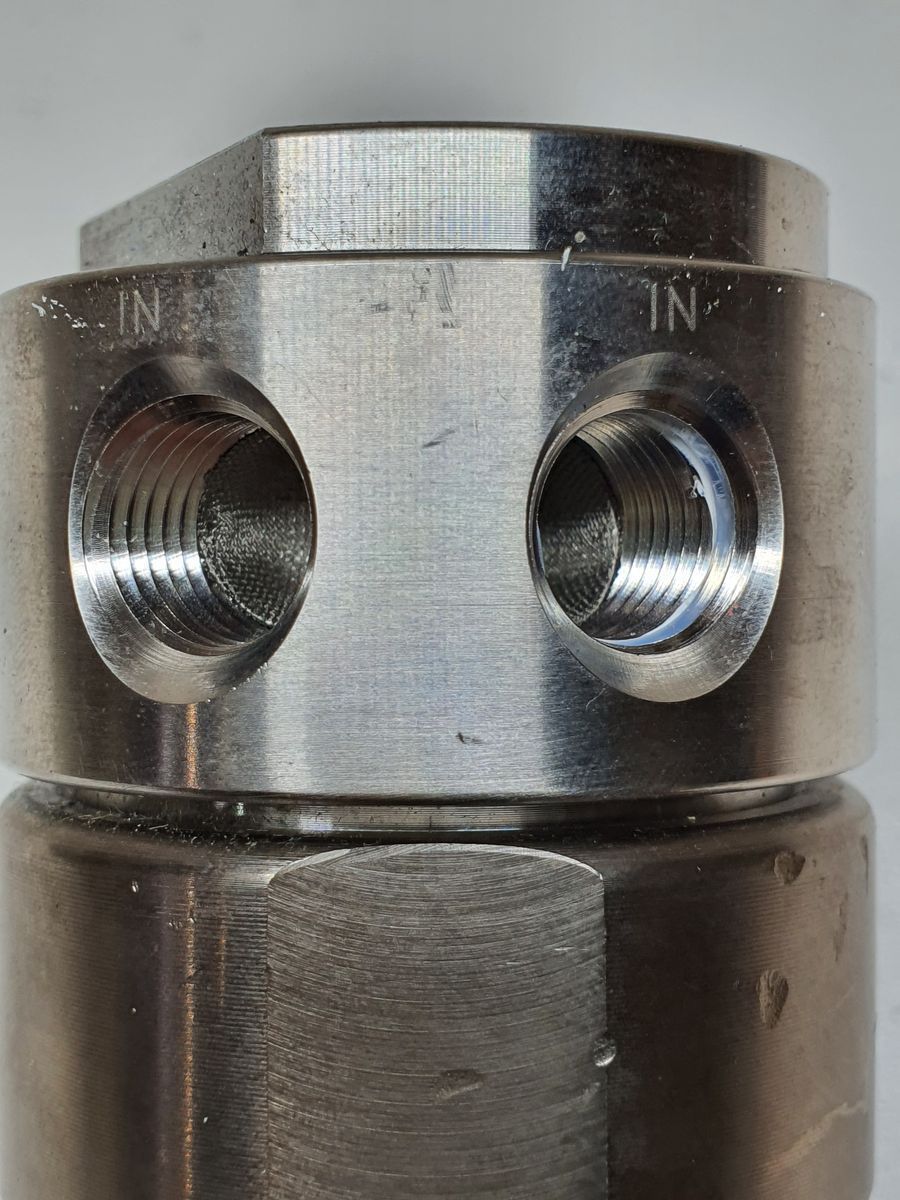

Port Size / Type: 1/4″ NPT(F)
Weight: Approx. 0.9 kg / 2 lbs (without gauges)

- Environmental
Operating Temperature: −40 °C to +74 °C (−40 °F to +165 °F)
Designed to meet ANSI/ASME B31.3 pressure equipment criteria

Typical Applications:
Gas cylinder pressure regulation for specialty and industrial gases
Laboratory and point-of-use gas systems
Sampling, calibration, and analyzer gas systems
Chromatograph fuel and detector gas supply
High-purity and corrosive gas control environments
