Tescom 44-1862-24S Pressure-Reducing Regulator

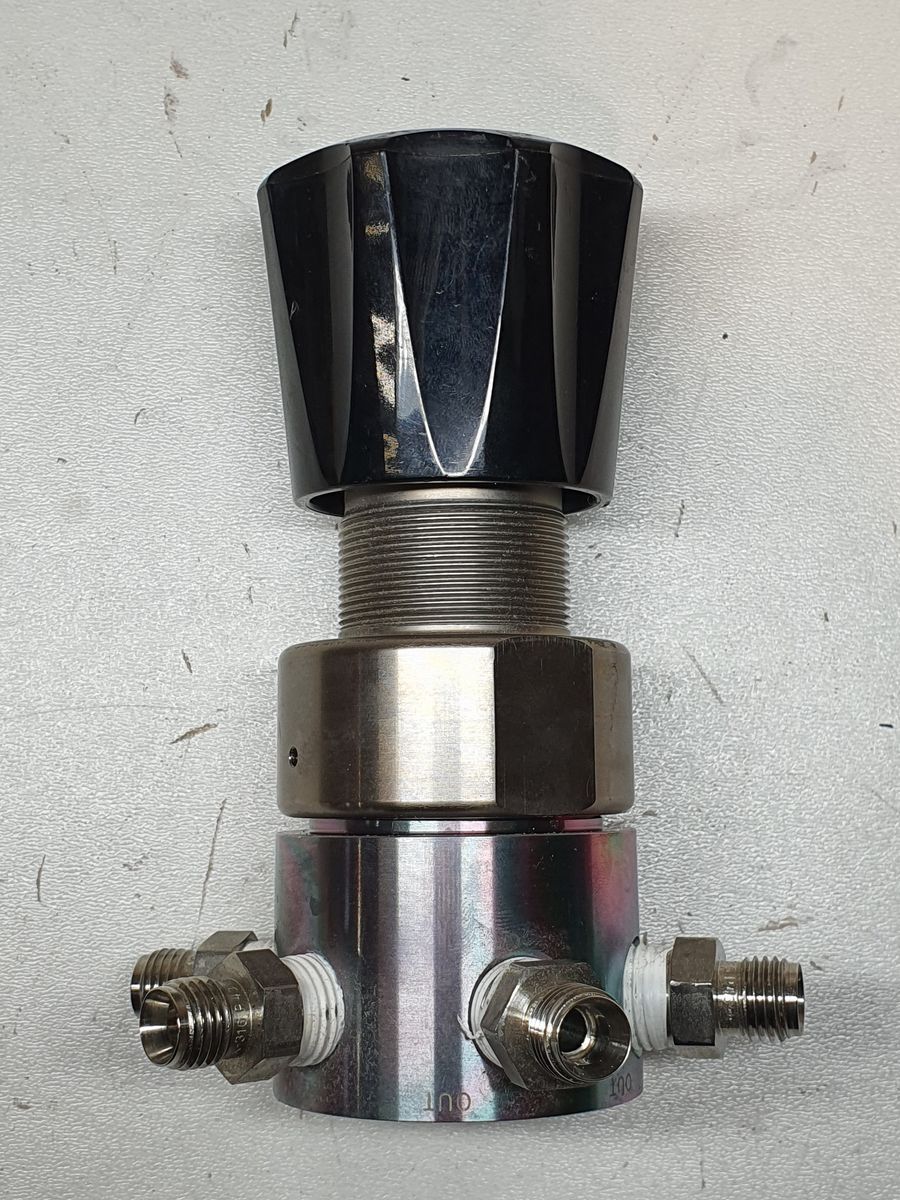

Tescom 44-1862-24S single-stage, pressure-reducing regulator

Description:
The Tescom 44-1862-24S (part of the 44-1800 Series piston-sensed pressure reducing regulators) is a high-pressure gas regulator designed for controlled reduction of supply pressure in industrial, test, and process systems. Rated for very high inlet pressures up to 6000 psi (414 bar) and providing a regulated outlet up to 2500 psi (172 bar), it delivers stable, repeatable downstream pressure for general-purpose, high-pressure gas applications.
The compact, rugged design makes it suitable for panel or line mounting where reliable pressure regulation is required across a wide range of operating conditions

Key Features:
- Single-stage pressure reducing regulator for gas service
- Designed for medium- to high-pressure gas regulation
- High inlet pressure capability: up to 6000 psig / 414 bar
- Outlet pressure range: 0–2500 psig / up to 172 bar (selected range)
- Metal diaphragm and body seal for minimal leakage and long service life
- Piston-sensed regulation for dependable output stability, compact, lightweight construction for easy installation
- Suitable for corrosive, non-corrosive, toxic, and specialty gases
- Options for panel mounting and material configurations (e.g., 316L SS, brass)

Specifications:
- Operating Parameters

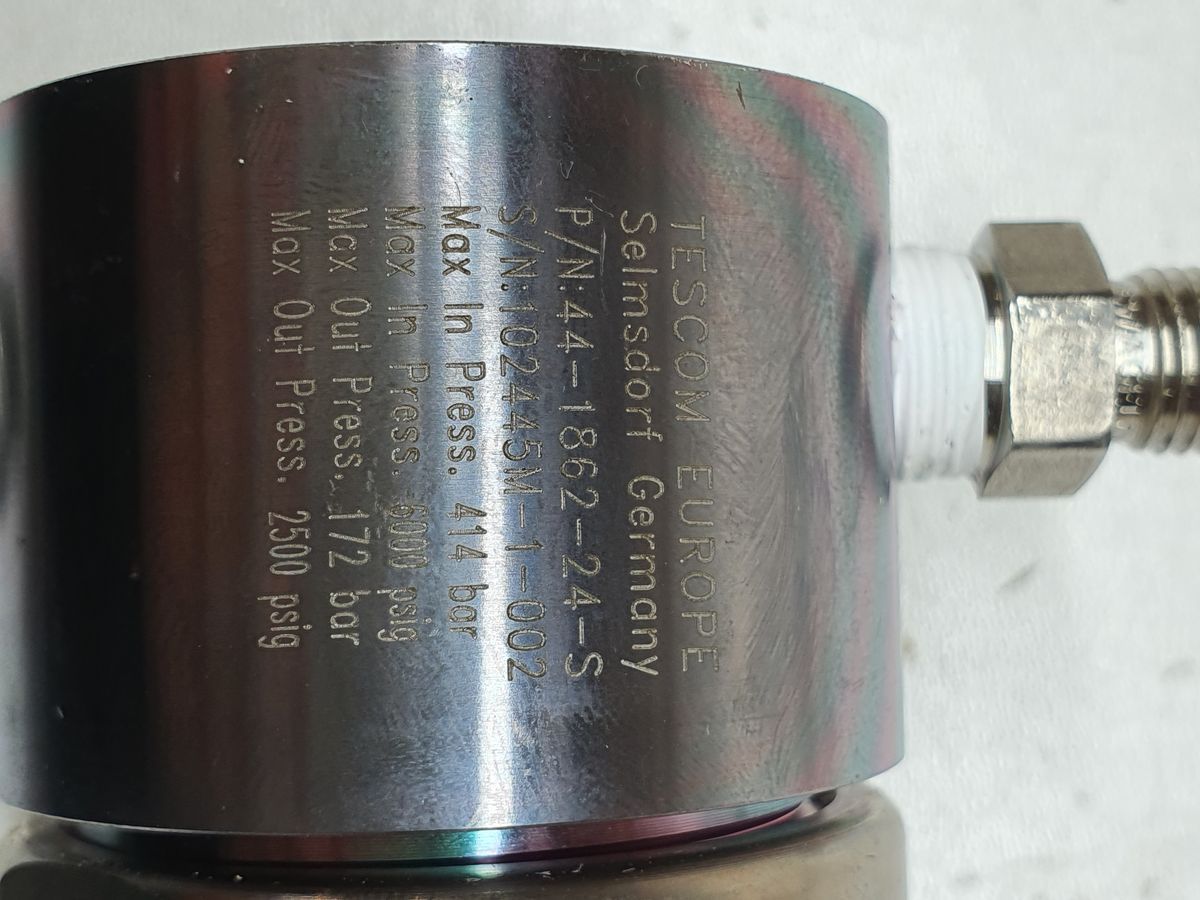

Model: 44-1862-24
Series: Tescom 44-1800 Series regulator
Regulator Type: Single-stage, pressure-reducing
Maximum Inlet Pressure: 414 bar / 6000 psi
Rated Outlet Pressure Range: 0–172 bar / 0–2500 psi
Flow Capacity: Cv = 0.06 (at 3500 psig inlet)
Internal Leakage: Bubble tight (internal)
Proof Pressure: 150 % of maximum rated

- Materials & Ports
Body Material: Brass
Seat: Teflon (PTFE) / Viton® (FKM)
Diaphragm: 316 Stainless Steel or Elgiloy® based on configuration
Port Size / Type: 1/4″ NPT(F)
Weight: Approx. 0.9 kg / 2 lbs (without gauges)

- Environmental
Operating Temperature: −40 °C to +74 °C (−40 °F to +165 °F)
Designed to meet ANSI/ASME B31.3 pressure equipment criteria

Typical Applications:
High-pressure gas supply and distribution systems
Industrial test benches and calibration rigs
Instrumentation and control panels
Process gas regulation in petrochemical and manufacturing facilities
Regulated gas supply for analyzers and sampling system

https://www.emerson.com/documents/automation/catalog-series-44-1800-industrial-pressure-regulator-tescom-en-5322240.pdf
