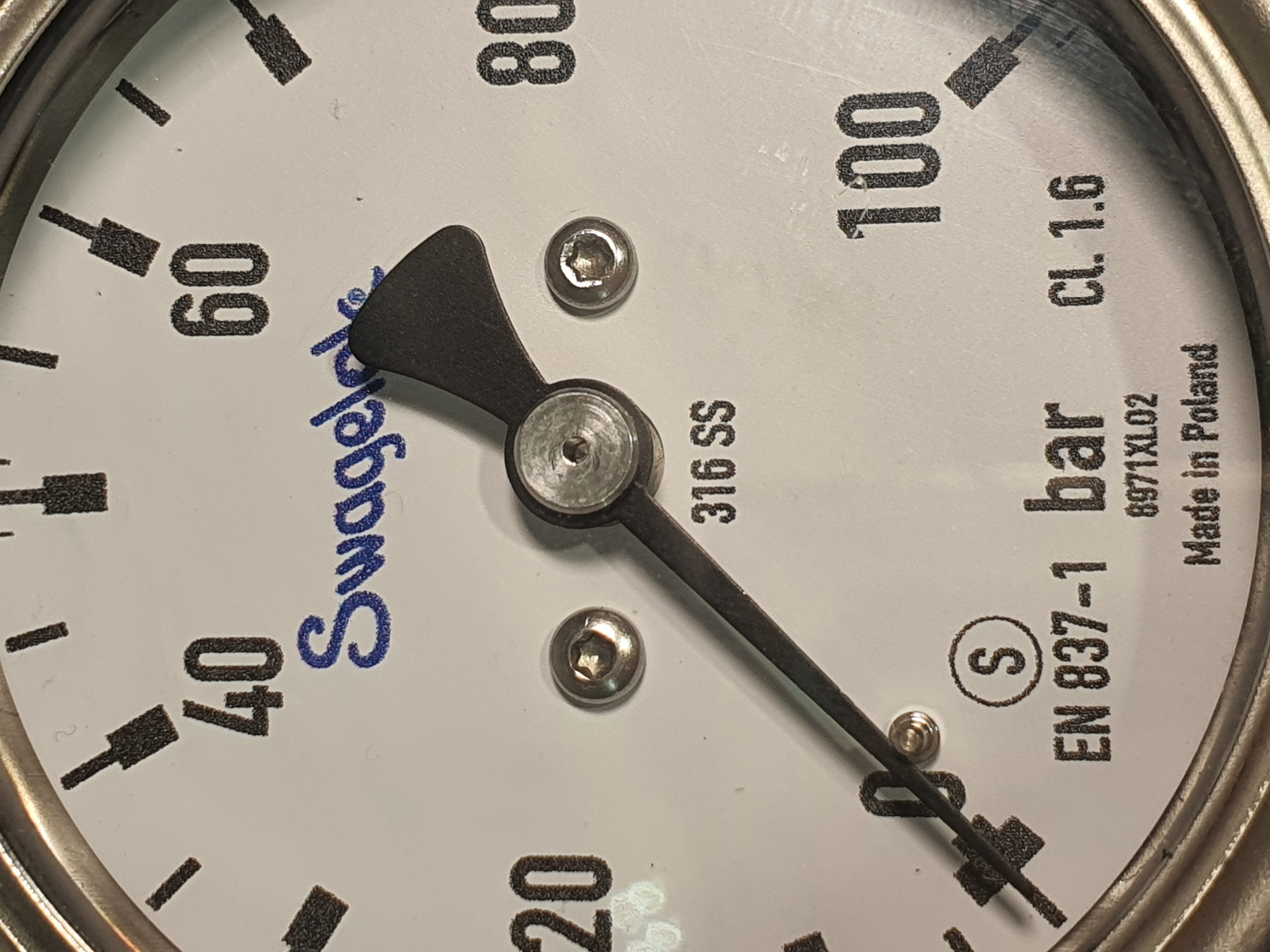

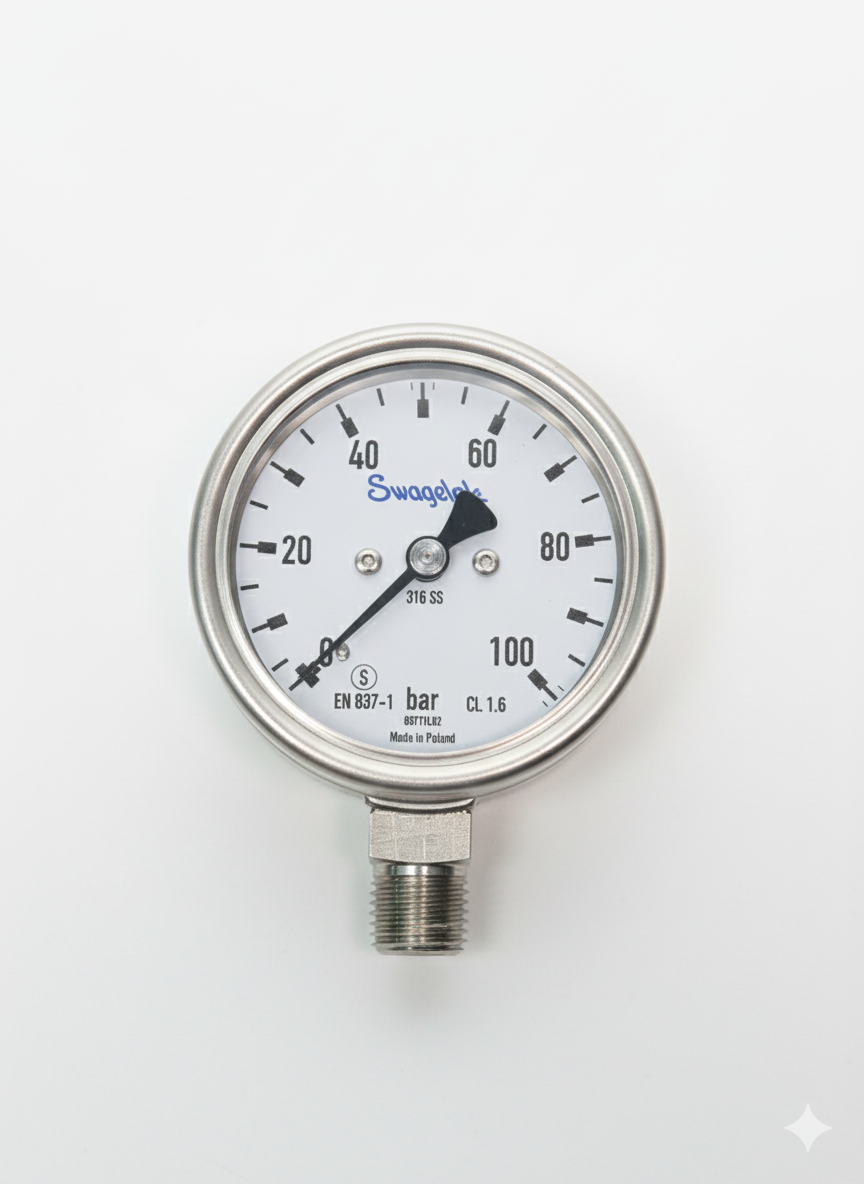

The Swagelok PGI-63C-PG100-LA0X

Description:
The product is a high-quality industrial pressure gauge designed for reliable and accurate pressure measurement in demanding process environments. Built to the EN 837-1 European standard, it ensures consistent performance, safety, and long-term durability. With a rugged stainless-steel construction and a 63 mm dial, this PGI-Series gauge is ideal for general industrial service, gas systems, hydraulics, and instrumentation panels requiring dependable pressure indication.

Specification:
- Standard Compliance: EN 837-1 (EU mechanical pressure gauge standard)
- Dial Size: 63 mm (2.5 in)
- Pressure Range: 0–100 psi (Model code "PG100")
- Construction Case Material: Stainless steel
- Wetted Materials: Typically stainless steel (316L or equivalent) for compatibility with gases & liquids
- Window: Polycarbonate or tempered glass (depending on variant)
- Internals: Bourdon tube mechanism for stable, repeatable measurement
- Performance Accuracy: ±1.6% of full scale (standard PGI 63 mm accuracy class)
- Temperature Range: Typically -20°C to +60°C (varies by fill and configuration)
- Vibration Resistance: Optional liquid-filled case for enhanced stability (LA0X code usually indicates dry gauge)
- Connections Process Connection: 1/4" NPT (common on 63 mm PGI gauges)
- Mounting: Lower mount (code “C” = center back or bottom connection depending on variant)

Applications:
Industrial gas systems
Hydraulic lines
Pneumatic equipment
Chemical and processing plants OEM machinery and instrumentation panels
Pressure monitoring in lab or production environments
