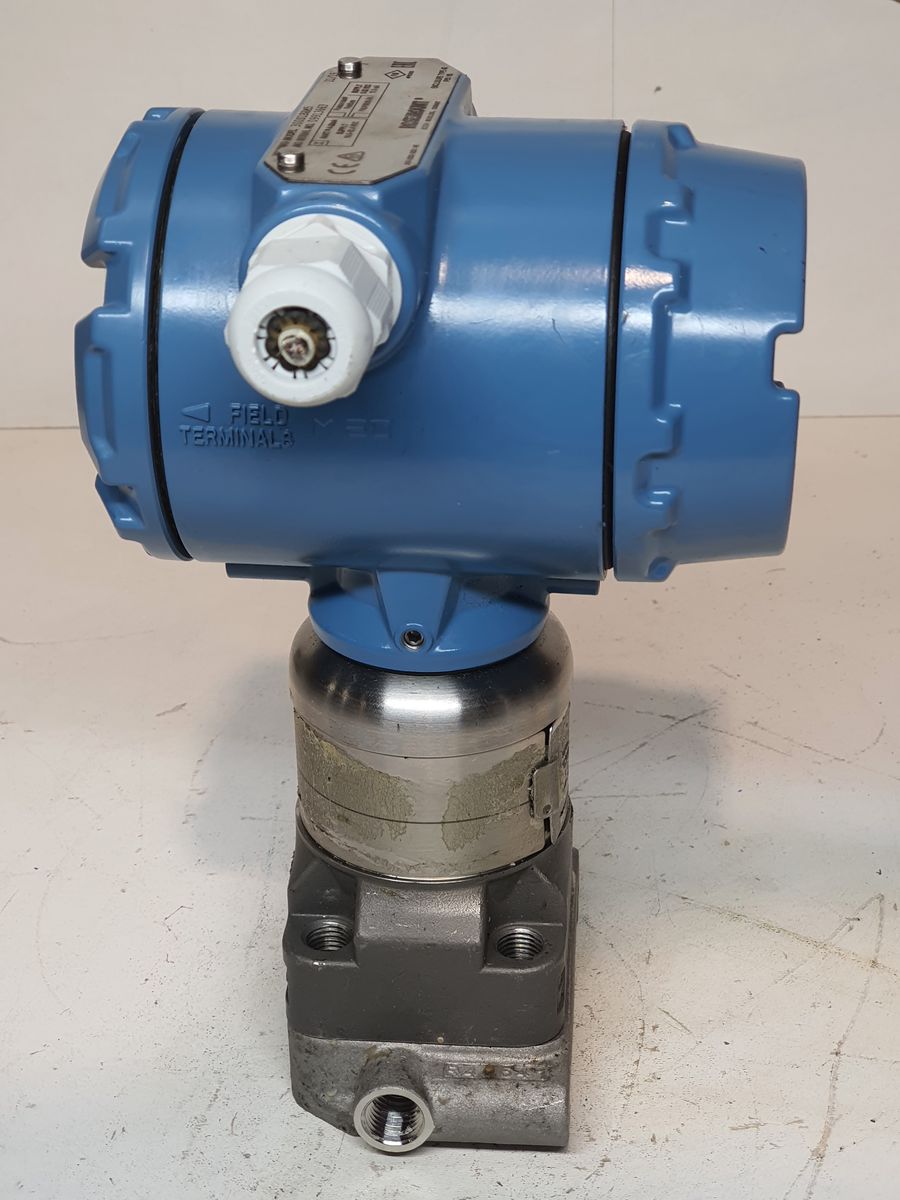

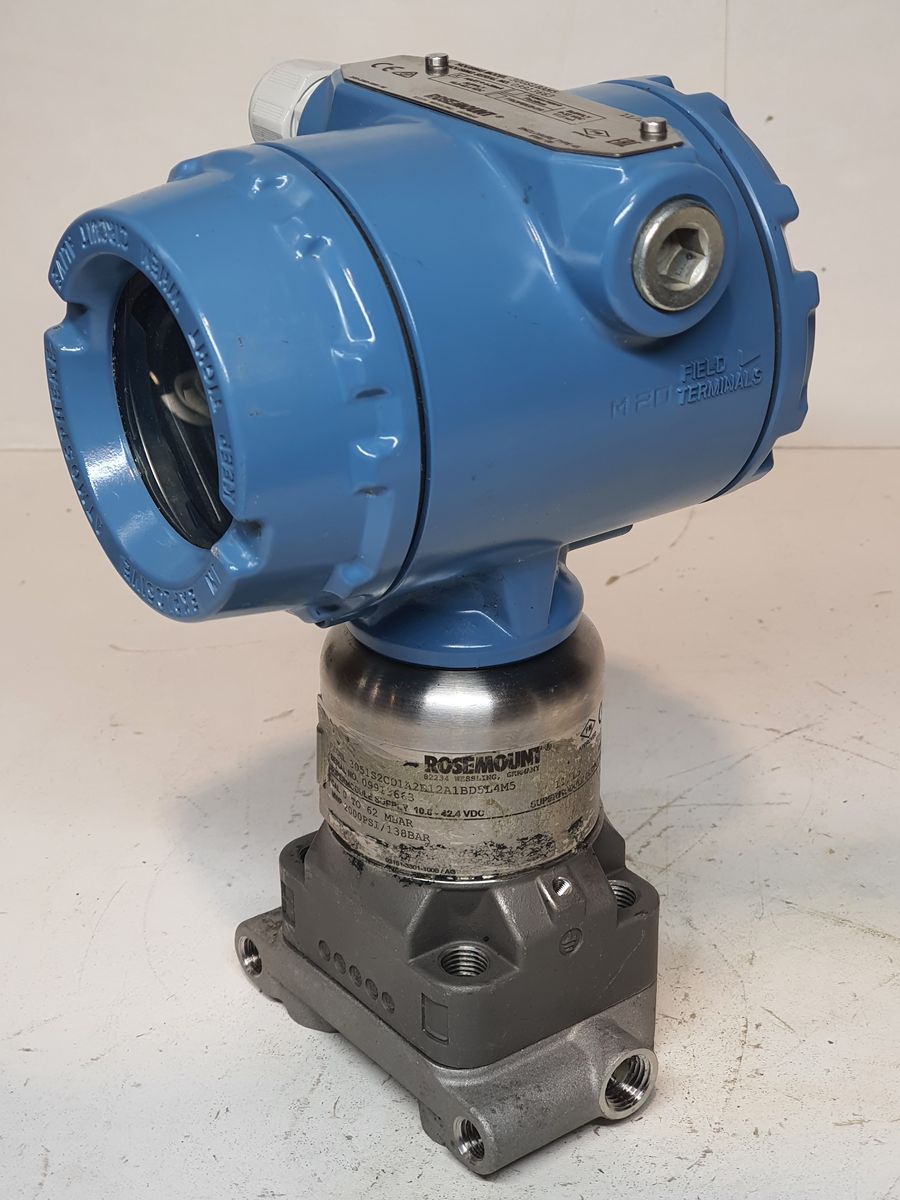

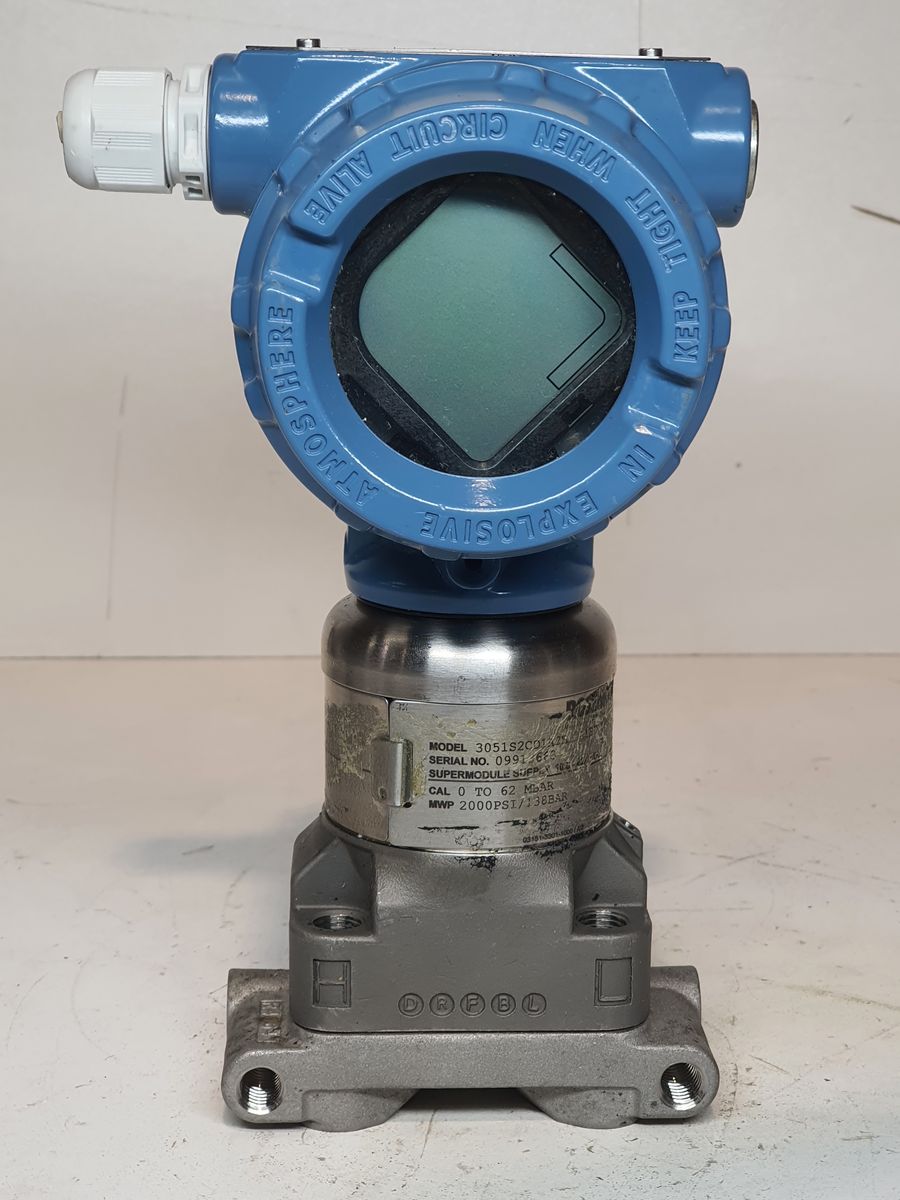

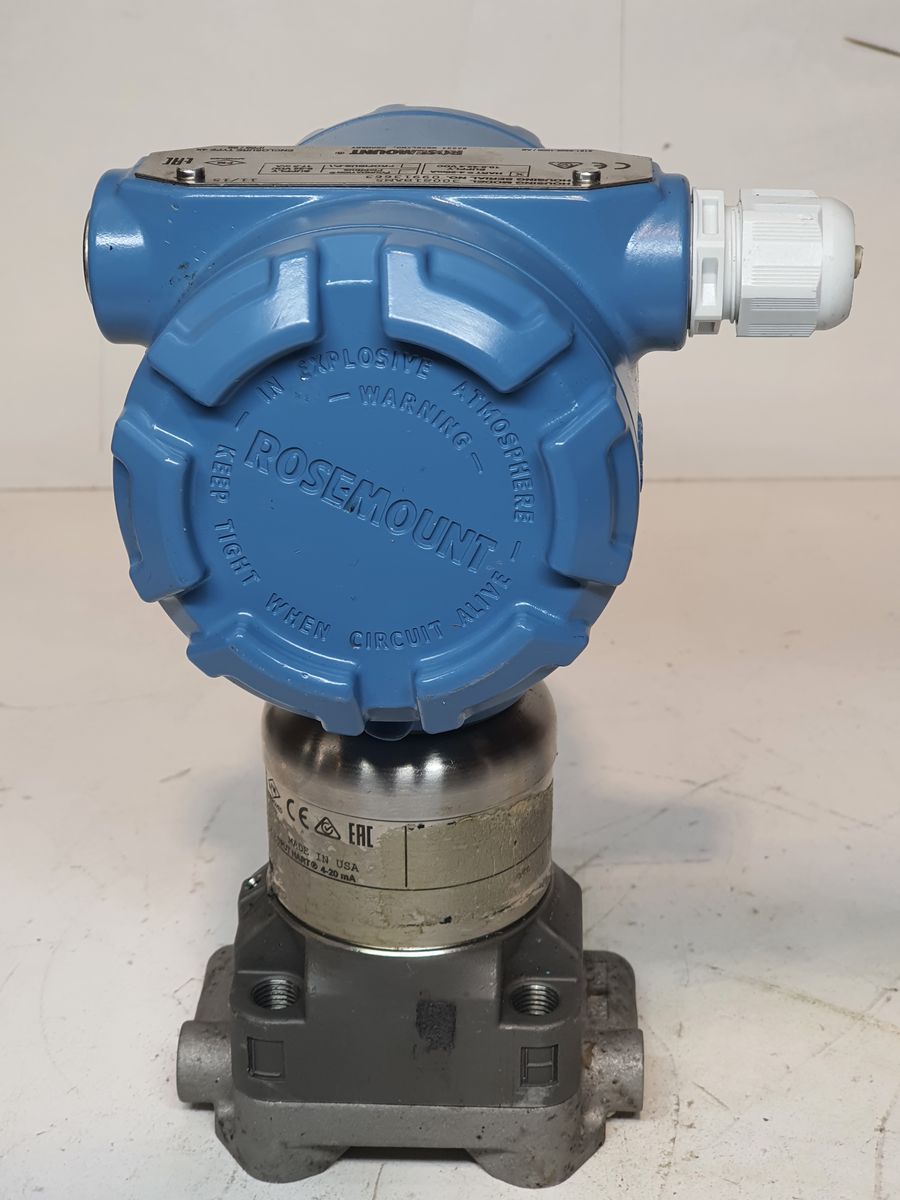

Druktransmitter

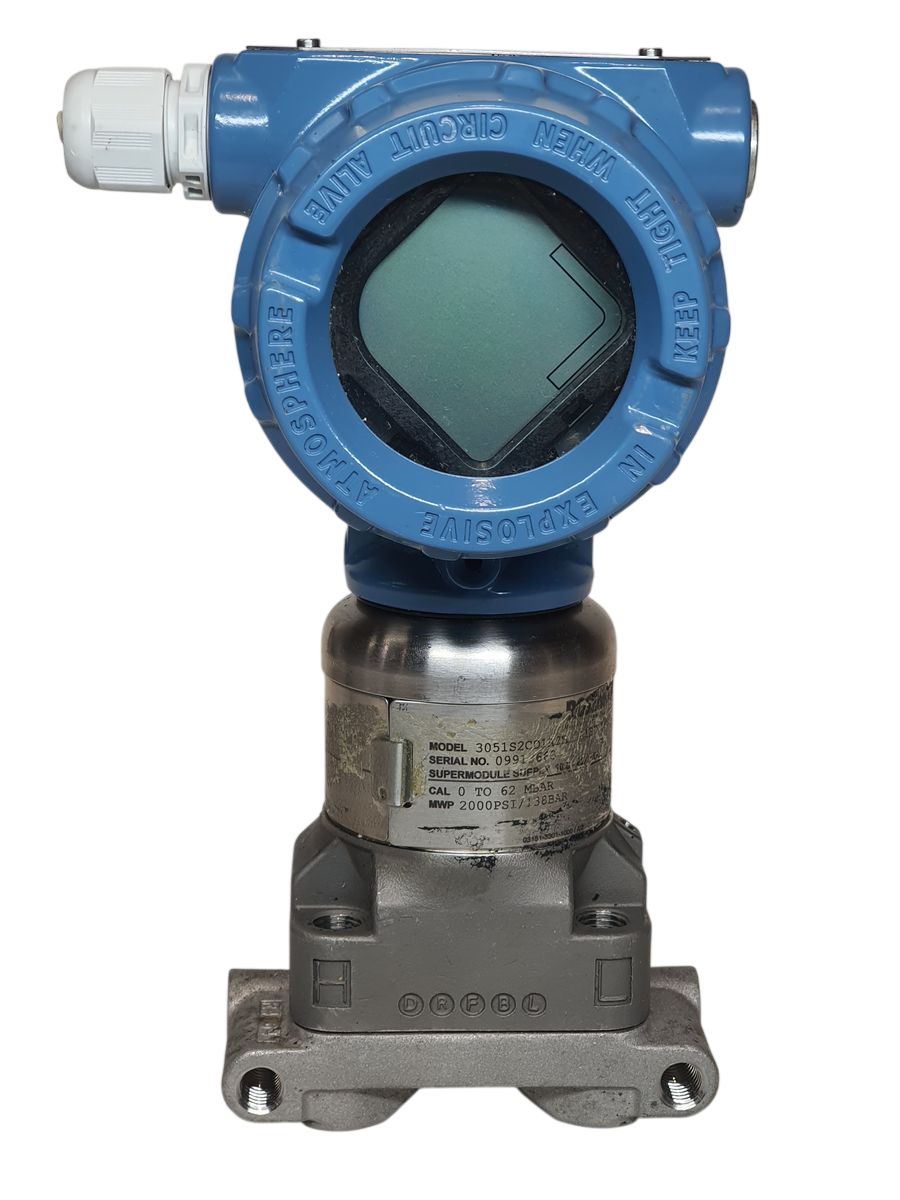

Rosemount 300S1BAM5/ 3051S2CD1A2E12A1BD5L4M5
SKU: 13009
Niet op voorraad

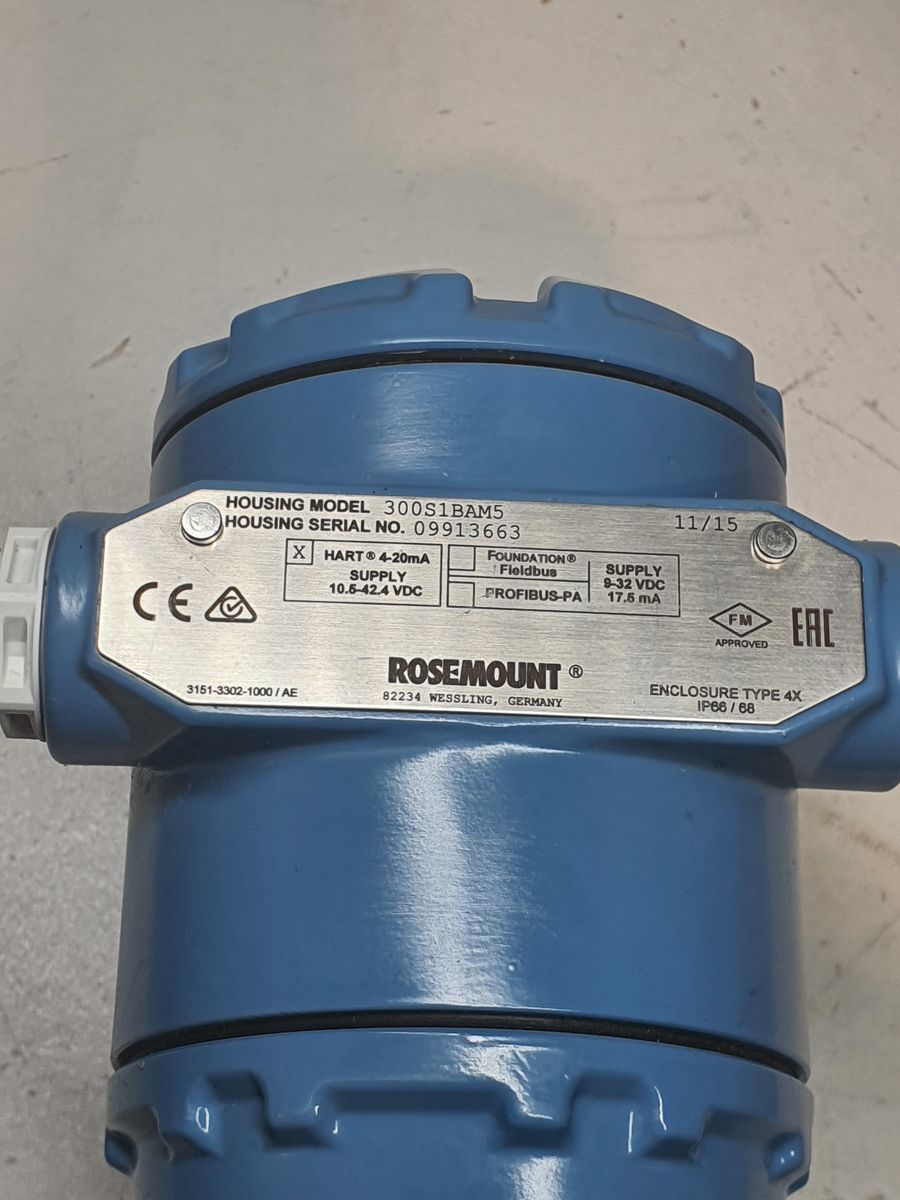

300S1BAM5
| Item | Meaning |
|---|---|
| Type | Direct-mount T-style manifold |
| Valve Style | 3-valve (2 block + 1 equalize) |
| Transmitter Connection | Direct coplanar mount |
| Process Connection | ½-in NPT female |
| Material | 316 stainless steel (body & valves) |
| Process Flange | 4-inch line size |
| Supply Voltage | 9-32 VDC/ 17.5mA |

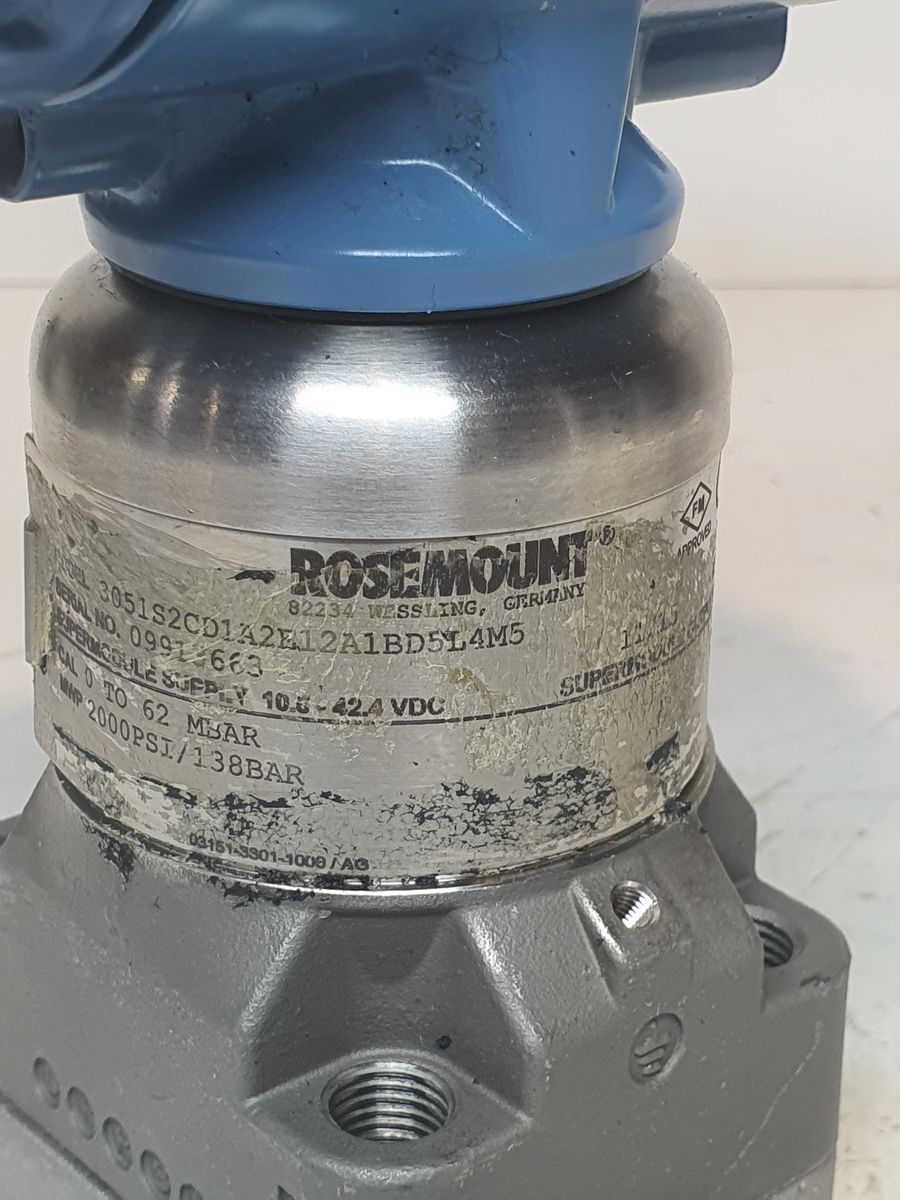

3051S2CD1A2E12A1BD5L4M5
| Item | Meaning |
|---|---|
| Model | 3051S – Scalable Pressure Transmitter |
| Performance Class | Classic (±0.035% of span accuracy) |
| Platform | Coplanar design |
| Measurement Type | Differential Pressure (DP) |
| Pressure Range | 0 to 62 mbar |
| Diaphragm | Gold-plated Alloy 400 (excellent corrosion resistance) |
| Output | 4–20 mA + HART |
| Housing | Aluminum |
| Approval | ATEX flameproof (Ex d) |
| Display | Integrated LCD with buttons |
| Max Static Pressure | 2000 psi / 138 bar |
| Supply Voltage | 10.5–42.4 VDC |
×
![]()
